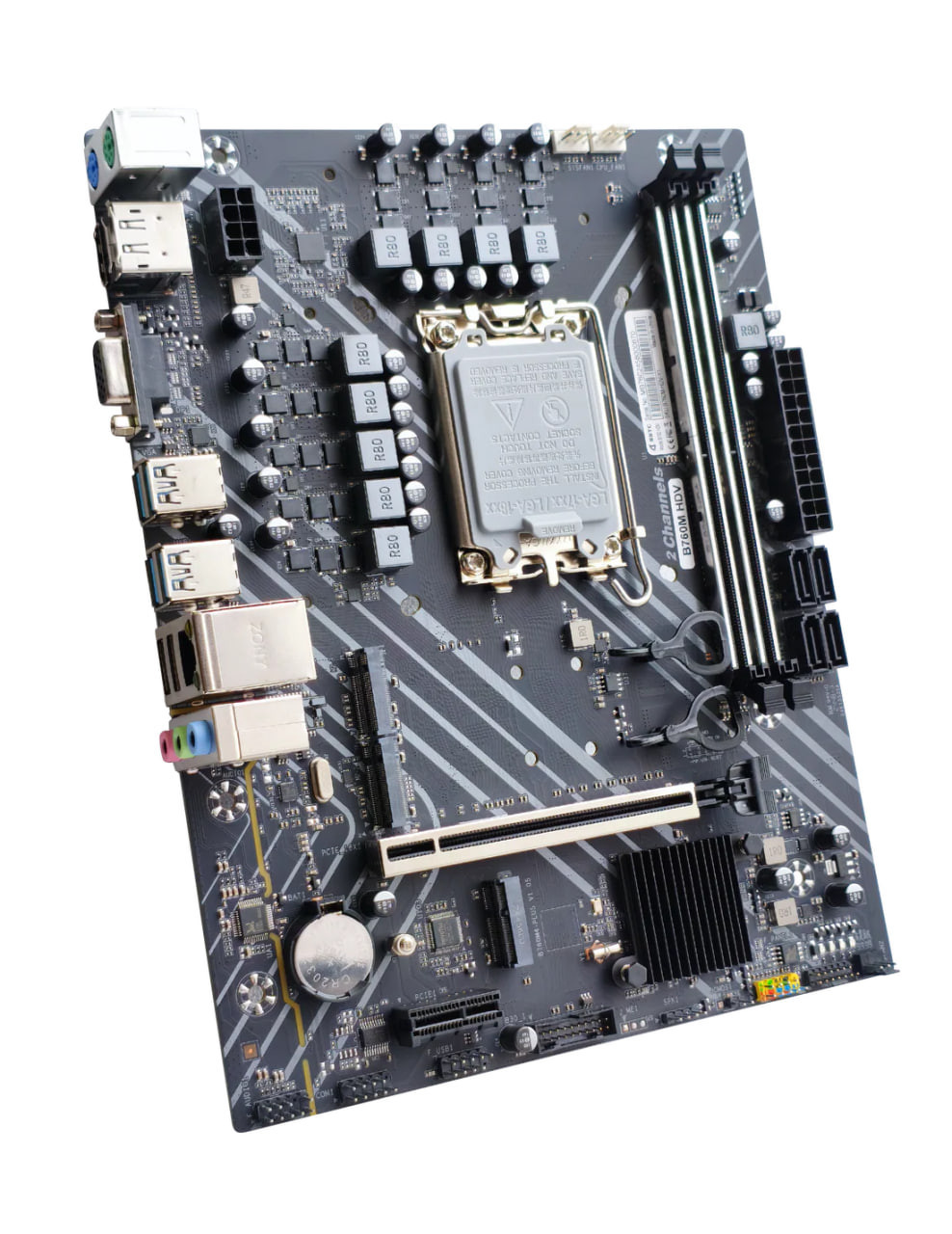

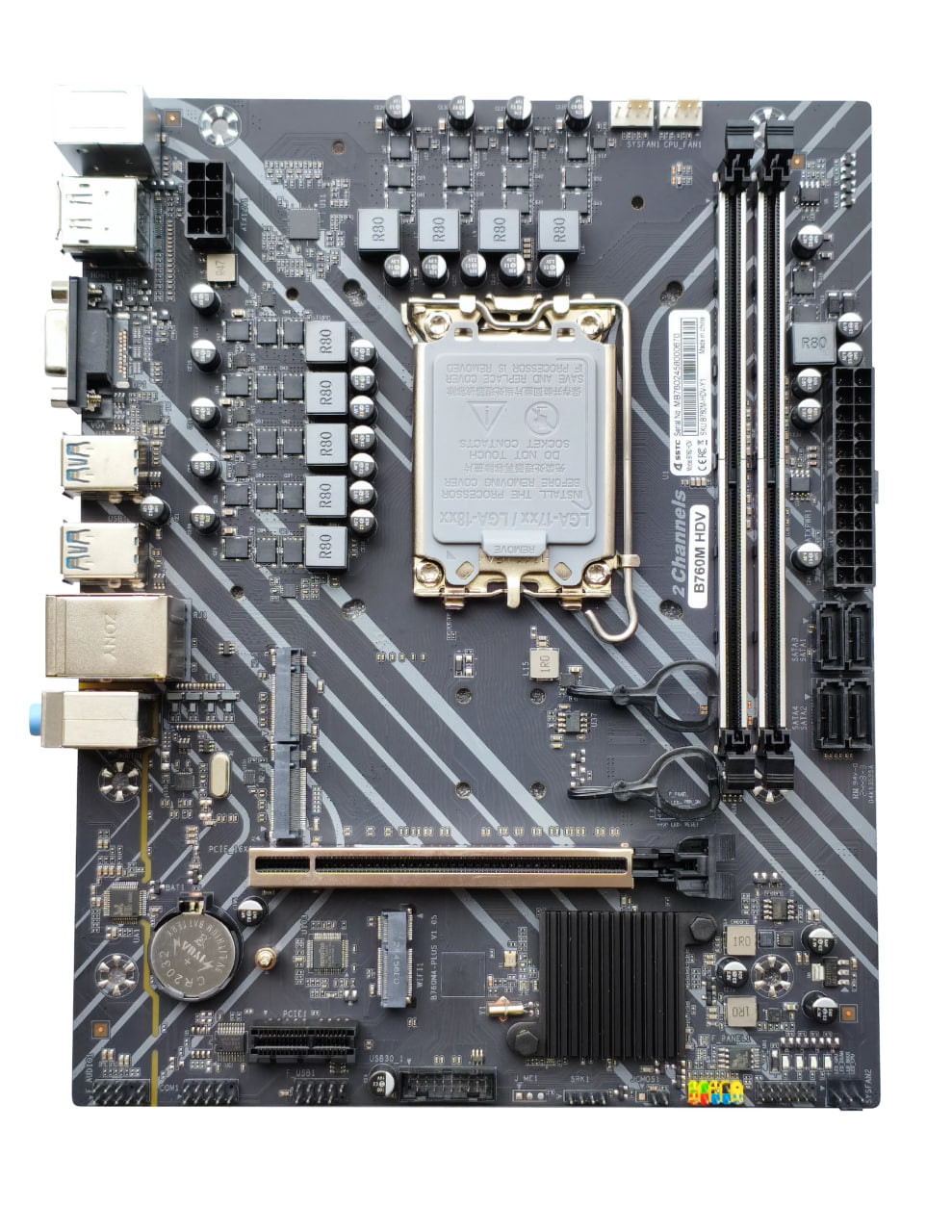

[Mới 100%] Mainboard SSTC B760M-HDV-Y1 (Socket 1700

[Mới 100%] Mainboard SSTC B760M-HDV-Y1 (Socket 1700 | DDR4)

Thông tin Khuyến mãi

✅ Các sản phẩm bán GIÁ SHOCK, các quà tặng đánh dấu (*) sẽ không áp dụng khi thanh toán qua các loại thẻ: VISA / MASTER / JCB / Amex.

1.690.000Đ

Giá gốc: ~~2.990.000Đ~~

-43%

New 100% Sản phẩm chưa qua sử dụng, tình trạng mới 100% full-box

***Bấm chọn cấu hình để xem giá và cơ sở có hàng

Socket CPU	Intel LGA 1700
Chipset	B760
Số khe RAM	2 x DDR4

Chat với nhân viên tư vấn

Mua trả góp Thủ tục đơn giản - lãi suất thấp Mua ngay Giao tận nơi hoặc nhận ở cửa hàng

Địa chỉ kho hàng

Có cửa hàng có sẵn sản phẩm này

ADD TO CART

Thông tin bảo hành

Yên tâm mua hàng

Hệ thống cửa hàng toàn quốc

Đại lý phân phối chính hãng

Giá luôn tốt nhất

Hỗ trợ trả góp lãi suất thấp

Bảo hành dài, hậu mãi chu đáo

Giao hàng toàn quốc

Đặc điểm nổi bật

Xem tất cả

Thông số kỹ thuật

Model	B760M HDV
SKU	B760M-HDV-Y1
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* upto 125W CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Chipset B760
Memory	2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules,
Display Output	1 x D-Sub port 1 x HDMI® port 1 x Display Port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@60Hz as specified in HDMI 2.0 and Display Port 1.4
Expansion Slots	1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x1 slot
Storage	Total supports 2 x M.2 slot and 4 x SATA 6Gb/s ports 2 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports
Network	1 x Realtek 1Gb Ethernet 1 x M.2 slot type 2232 for WIFI
USB	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio	Realtek ALC897 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Features - Audio Shielding - Dedicated audio PCB layers
Back Panel I/O Ports	4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Display Port port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 2 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header 4 x System debugging LEDs

Model	B760M HDV
SKU	B760M-HDV-Y1
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* upto 125W CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Chipset B760
Memory	2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules,
Display Output	1 x D-Sub port 1 x HDMI® port 1 x Display Port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@60Hz as specified in HDMI 2.0 and Display Port 1.4
Expansion Slots	1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x1 slot
Storage	Total supports 2 x M.2 slot and 4 x SATA 6Gb/s ports 2 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports
Network	1 x Realtek 1Gb Ethernet 1 x M.2 slot type 2232 for WIFI
USB	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio	Realtek ALC897 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Features - Audio Shielding - Dedicated audio PCB layers
Back Panel I/O Ports	4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Display Port port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 2 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header 4 x System debugging LEDs

Xem cấu hình chi tiết
