Mainboard MSI MAG B460M BAZOOKA (Intel B460, Socket 1200, m-ATX, 4 khe RAM DDR4)

2.499.000Đ

Mainboard MSI Intel B460, socket LGA 1200. Phục vụ tốt nhu cầu làm việc và chơi game. Hỗ trợ ép xung dễ dàng. Linh kiện cao cấp. Khe PCIe bọc thép chống gãy chân card đồ họa. Có cổng M.2 tích hợp sẵn tản nhiệt

✅ Bảo hành 36 tháng chính hãng MSI

Hotline tư vấn: 024.7106.9999

Mua ngay Giao tận nơi hoặc nhận ở cửa hàng

Đặc điểm nổi bật

Thông số kỹ thuật

Model	MAG B460M BAZOOKA
CPU hỗ trợ	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset	Intel® B460 Chipset
RAM hỗ trợ	4x DDR4 memory slots, support up to 128GB Intel^® Core^™ i7/i9 Supports up to DDR4 2933 MHz Intel^® Core^™ i5 (Below) Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Khe cắm mở rộng	1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH)
Hỗ trợ đa card màn hình	1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
Lưu trữ	4x SATA 6Gb/s ports ¹ 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices ¹ M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel^® Optane™ Memory Ready ² Supports Intel^® Smart Response Technology for Intel Core™ processors SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Âm Thanh	Realtek^® ALC1200 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek^® RTL8111H Gigabit LAN Controller
Cổng kết nối ( I/O bên trong)	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector

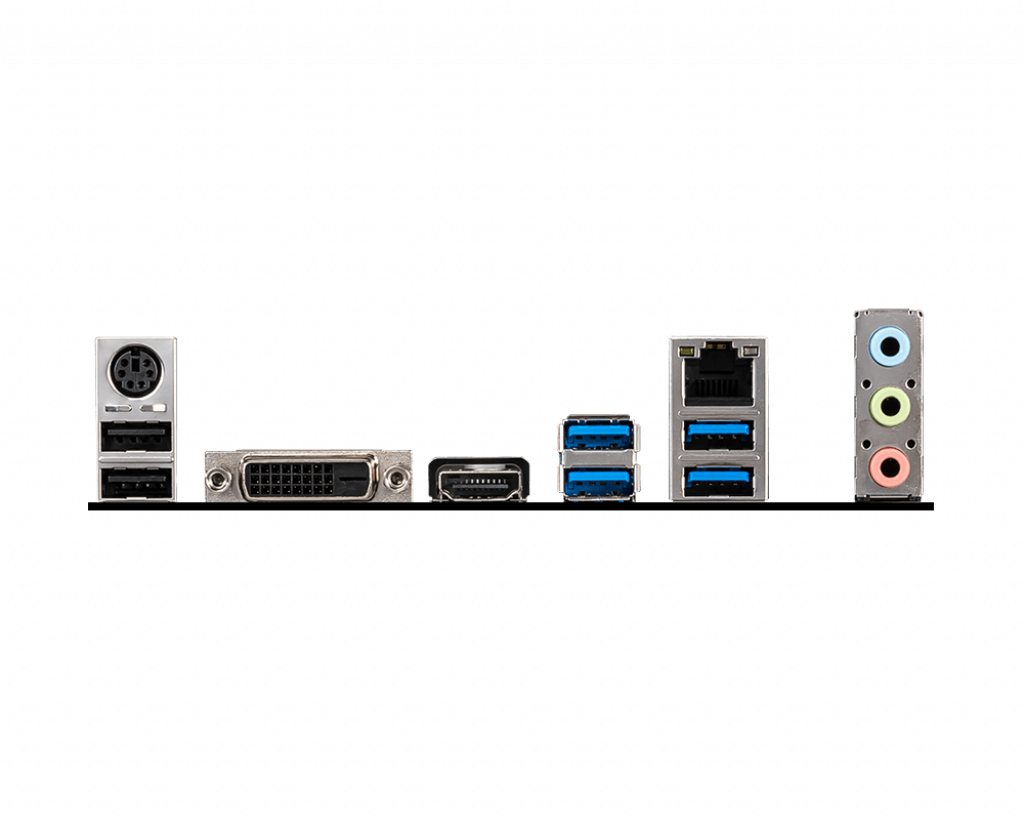

Cổng kết nối ( I/O Phía sau)	PS/2 Combo Port Gigabit LAN USB 2.0 Ports DVI-D HDMI Port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) HD Audio Connectors
Kích cỡ	mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Xem cấu hình chi tiết

Thông số kỹ thuật

Model	MAG B460M BAZOOKA
CPU hỗ trợ	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset	Intel® B460 Chipset
RAM hỗ trợ	4x DDR4 memory slots, support up to 128GB Intel^® Core^™ i7/i9 Supports up to DDR4 2933 MHz Intel^® Core^™ i5 (Below) Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Khe cắm mở rộng	1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH)
Hỗ trợ đa card màn hình	1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
Lưu trữ	4x SATA 6Gb/s ports ¹ 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices ¹ M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel^® Optane™ Memory Ready ² Supports Intel^® Smart Response Technology for Intel Core™ processors SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Âm Thanh	Realtek^® ALC1200 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek^® RTL8111H Gigabit LAN Controller
Cổng kết nối ( I/O bên trong)	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 2x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x parallel port connector 1x serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector
Cổng kết nối ( I/O Phía sau)	PS/2 Combo Port Gigabit LAN USB 2.0 Ports DVI-D HDMI Port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) HD Audio Connectors
Kích cỡ	mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
