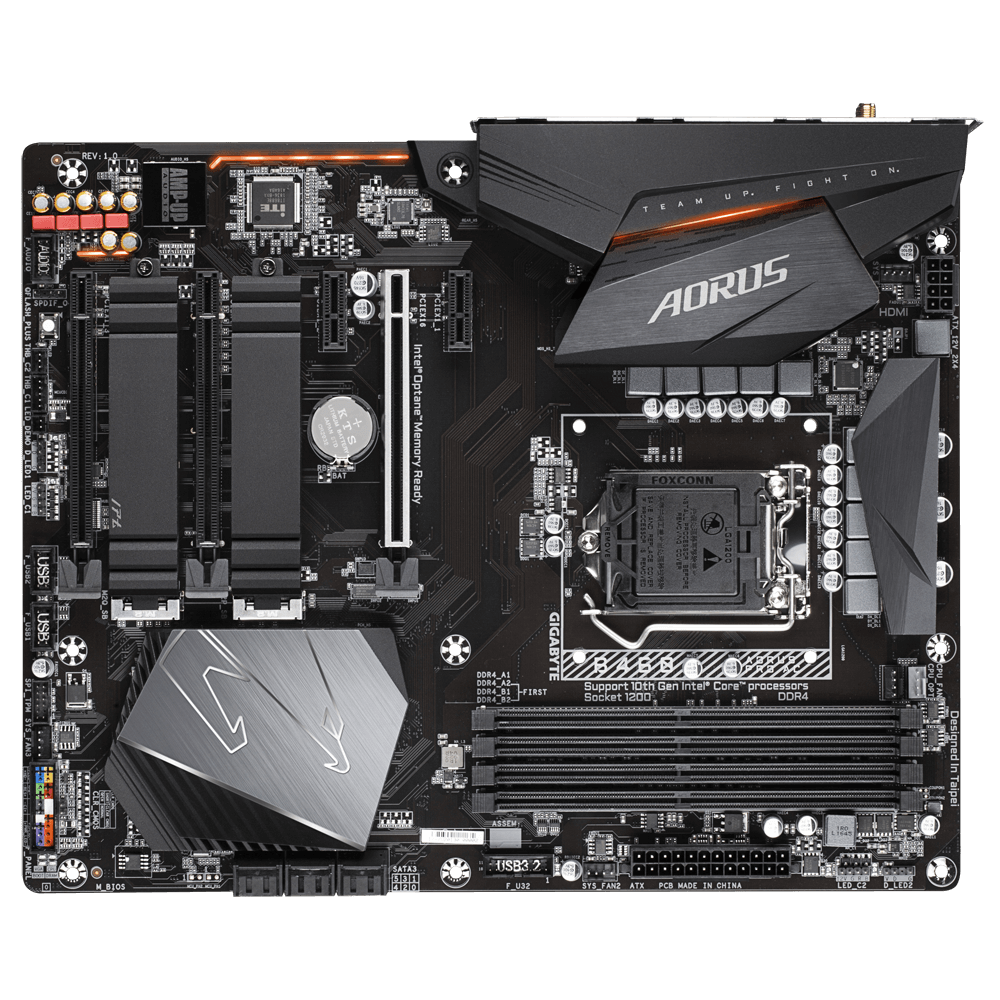

Đánh giá chi tiết Mainboard Gigabyte B460 AORUS PRO AC
Mainboard Gigabyte B460 AORUS PRO AC chipset B460, socket LGA 1200. Phục vụ tốt nhu cầu làm việc và chơi game độ bền cao cùng với đó là các tính năng hiện đại đáp ứng nhu cầu của mọi người dùng cũng như game thủ:
Khe cắm NVMe PCIe Gen3 X4 M.2 kép với bộ bảo vệ nhiệt
Intel ® GbE LAN không độ trễ với phần mềm tăng tốc Internet cFosSpeed
WIFI Intel ® 802.11ac Wave2 2T2R & BT 5
RGB FUSION 2.0 với thiết kế hiển thị ánh sáng LED RGB đa vùng
Hệ thống tản với Smart Fan 5 cảm biến nhiệt độ thông minh và dễ tùy chỉnh cùng thiết kế tản nhiệt tiên tiến
Hỗ trợ Intel ® USB 3.2 Gen 2 Type-C ™
Q-Flash Plus Cập nhật BIOS mà không cần cài đặt CPU, Bộ nhớ và Card đồ họa
Cài đặt dễ dàng và nhanh chóng
Hiệu suất
Mainboard Gigabyte B460 AORUS PRO AC sử dụng thiết kế MOSFETs kỹ thuật số hỗn hợp 8 + 2 PWM với RDS (on) để hỗ trợ các CPU Intel ® Core ™ mới nhất. Mang lại hiệu suất hệ thống nâng cao và khả năng mở rộng phần cứng tối ưu.
Dung lượng bộ nhớ tối đa trên bo mạch chủ B460 là 128GB với mỗi khe cắm có thể hỗ trợ tối đa 32GB.
Tích hợp mạng LAN Intel 2.5GbE
Mạng LAN 2,5G cung cấp kết nối mạng lên đến 2,5 GbE, với tốc độ truyền nhanh hơn ít nhất hai lần so với mạng 1GbE thông thường. Nó hoàn toàn phù hợp cho các game thủ và streamer với trải nghiệm trực tuyến mượt mà và tối ưu. Cung cấp cho người dùng trải nghiệm Internet mượt mà và nhanh nhất.
Tích hợp Intel ® 802.11ac Wave2 CNVi WIFI + Bluetooth 5 cho phép hiệu suất không dây đạt mức gigabit, cung cấp video trực tuyến mượt mà, trải nghiệm chơi game tốt hơn, kết nối luôn ổn định với tốc độ lên đến 1.73 Gbps. Tăng gấp đôi tốc độ so với thế hệ trước. Hơn nữa, Bluetooth 5 cho phạm vi kết nối gấp 4 lần so với BT4.2 và truyền nhanh hơn.
Hỗ trợ USB 3.2 Gen 2 Type-C ™
USB 3.2 Gen 2 với tốc độ lên đến 10Gbps. Với băng thông gấp đôi so với thế hệ trước được xem là trình kết nối đa năng mới với nhiều tính năng hữu ích hỗ trợ tốc độ truyền dữ liệu cao hơn và có thể tương thích với nhiều loại thiết bị hơn
Tối ưu tản nhiệt
Mainboard Gigabyte B460 AORUS PRO AC có thiết kế Tản nhiệt MOSFET lớn và sử dụng tấm dẫn nhiệt LAIRD 5 W / mK giúp tăng hiệu quả tản nhiệt.
Với 6 cảm biến nhiệt độ và 5 đầu nối quạt đảm bảo người dùng luôn duy trì hiệu suất ở mức tốt nhất và kiểm soát nhiệt độ một cách tốt nhất. Bạn có thể sử dụng biểu đồ đường cong quạt trực quan để xác định ngưỡng kích hoạt và tốc độ quạt tương ứng. Để mức nhiệt luôn tối ưu nhất
AORUS AUDIO - Âm thanh chất lượng
Với ALC1220 là bộ giải mã âm thanh độ nét cao đa kênh hiệu suất cao với lên đến 120dB SNR cho âm thanh trong trẻo và các tính năng như Smart Headphone Amp, ghi âm 114dB SNR đảm bảo mang đến cho người dùng chất lượng âm thanh tốt nhất.
Các bo mạch chủ AORUS tự hào có sự kết hợp của tụ điện WIMA FKP2 cấp Hi-Fi và tụ âm thanh Nichicon cao cấp sử dụng công nghệ hiện đại để cung cấp âm thanh phong phú với âm trầm và tần số cao rõ ràng hơn, thêm vào đó là bộ khuếch đại tai nghe thông minh mang đến cho người dùng sự hài lòng tuyệt đối.
Thiết kế trình chiếu ánh sáng đa vùng
Mainboard Gigabyte B460 AORUS PRO AC cung cấp nhiều tùy chỉnh LED hơn bao giờ hết, người dùng có thể điều chỉnh PC để thể hiện phong cách riêng. Với sự hỗ trợ đầy đủ RGB và ứng dụng RGB Fusion 2.0 người dùng có toàn quyền kiểm soát các đèn LED bao quanh bo mạch chủ.
Độ bền cao
Khe PCI được gia cố bằng 2 chốt kim loại hàn trực tiếp trên bo mạch giúp chắc chắn và hạn chế hiện tượng cong vênh.
Các đầu nối nguồn ATX 24pin & ATX 12V 8pin được mạ chắc chắn với diện tích tiếp xúc lớn, có khả năng duy trì công suất và nhiệt lượng cao giúp cung cấp nguồn điện ổn định đồng thời tăng độ bền cho bo mạch chủ.
Mainboard Gigabyte B460 AORUS PRO AC cũng được gia cố chắc chắn từng chi tiết. Với Giáp PCIe Ultra Durable ™ giúp củng cố các đầu nối PCIe bằng thép không gỉ, gia tăng độ bền.
Công nghệ Q-Flash Plus
Với GIGABYTE Q-Flash Plus Cập nhật BIOS dễ dàng mà không cần cài đặt CPU, bộ nhớ và card đồ họa. Chỉ cần tải xuống và lưu tệp BIOS mới (đổi tên thành gigabyte.bin) trên ổ flash USB, sau đó nhấn nút Q-Flash Plus chuyên dụng.
Gigabyte Bios và ứng dụng
Bios thân thiện, dễ dàng thao tác, thân thiện với các chức năng dễ sử dụng hơn mang đến cho người dùng trải nghiệm tốt hơn trong khi thiết lập hệ thống mới.
Thông số chi tiết
Model
B460 AORUS PRO AC
CPU hỗ trợ
Hỗ trợ cho thế hệ thứ 10 Intel® Core Socket LGA1200
Chipset
Intel® B460 Express Chipset
RAM hỗ trợ
4 x DDR4 DIMM socket hỗ trợ lên đến 128GB (32 GB / DIMM )
Kiến trúc bộ nhớ kênh đôi
Bộ xử lý Intel® Core™ i9/i7:
Hỗ trợ bộ nhớ DDR4 2933/2666/2400/2133 MHz
Bộ xử lý Intel® Core™ i5/i3/Pentium®/Celeron®:
Hỗ trợ bộ nhớ DDR4 2666/2400/2133 MHz
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Vui lòng tham khảo "Danh sách hỗ trợ bộ nhớ" để biết thêm thông tin.)
Cổng xuất hình onboard
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512 MB
Đa card màn hình
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Âm Thanh
Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Ổ cứng hỗ trợ
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors.
Intel® Optane™ Memory Ready
* System Acceleration with Intel® Optane™ Memory enabled on the M2Q_SB connector only.
USB
Chipset+ASMedia® USB 3.2 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel
Cổng kết nối ( I/O bên trong)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Cổng kết nối ( I/O Phía sau)
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
Xem tất cả
Thông số kỹ thuật
Model
B460 AORUS PRO AC
CPU hỗ trợ
Hỗ trợ cho thế hệ thứ 10 Intel® Core Socket LGA1200
Chipset
Intel® B460 Express Chipset
RAM hỗ trợ
4 x DDR4 DIMM socket hỗ trợ lên đến 128GB (32 GB / DIMM )
Kiến trúc bộ nhớ kênh đôi
Bộ xử lý Intel® Core™ i9/i7: Hỗ trợ bộ nhớ DDR4 2933/2666/2400/2133 MHz
Bộ xử lý Intel® Core™ i5/i3/Pentium®/Celeron®: Hỗ trợ bộ nhớ DDR4 2666/2400/2133 MHz
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Vui lòng tham khảo "Danh sách hỗ trợ bộ nhớ" để biết thêm thông tin.)
Cổng xuất hình onboard
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512 MB
Đa card màn hình
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Âm Thanh
Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio.
Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Khe cắm mở rộng
1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
3 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Ổ cứng hỗ trợ
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors.
Intel® Optane™ Memory Ready * System Acceleration with Intel® Optane™ Memory enabled on the M2Q_SB connector only.
USB
Chipset+ASMedia® USB 3.2 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel
Cổng kết nối ( I/O bên trong)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Cổng kết nối ( I/O Phía sau)
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Các tính năng độc đáo
Support for APP Center
* Các ứng dụng có sẵn trong Trung tâm APP có thể thay đổi theo mô hình bo mạch chủ. Các chức năng được hỗ trợ của từng ứng dụng cũng có thể khác nhau tùy thuộc vào thông số kỹ thuật của bo mạch chủ.
@BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer
Support for Q-Flash
Support for Xpress Install
Kích cỡ
ATX Form Factor; 30.5cm x 24.4cm
