Mainboard ASUS PRIME B460M-K (Intel B460, Socket 1200, m-ATX, 2 khe Ram DDR4, VGA + DVI)

Model

ASUS PRIME B460M-K

CPU hỗ trợ

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

Intel® B460

RAM hỗ trợ

2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Support Dual Channel Memory

Supports Intel® Extreme Memory Profile (XMP)

OptiMem

* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively

Hình ảnh

1 x D-Sub

1 x DVI-D

*Graphics specifications may vary between CPU types.

Đa card màn hình

Hỗ trợ Công nghệ AMD CrossFireX 2 Chiều

Khe cắm mở rộng

Intel® 10th Gen Processors

1 x PCIe 3.0/2.0 x16 (x16 mode)

Intel® B460 Chipset

2 x PCIe 3.0/2.0 x1

Ổ cứng hỗ trợ

1 x M.2 + 6 x SATA 6Gb/s

Intel® B460 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Âm Thanh

Realtek ALC887 7.1-Channel High Definition Audio CODEC *

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- LED-illuminated design

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

USB

Rear USB Port ( Total 6 )

4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)

2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)

4 x USB 2.0 port(s)

Phần mềm độc quyền

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert

- EZ update

AI Charger

ASUS CPU-Z

DAEMON Tools

Norton Anti-virus software(Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Tính năng đặc biệt

ASUS 5X PROTECTION III

- ASUS DIGI+ VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS Safeslot core

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-Slot

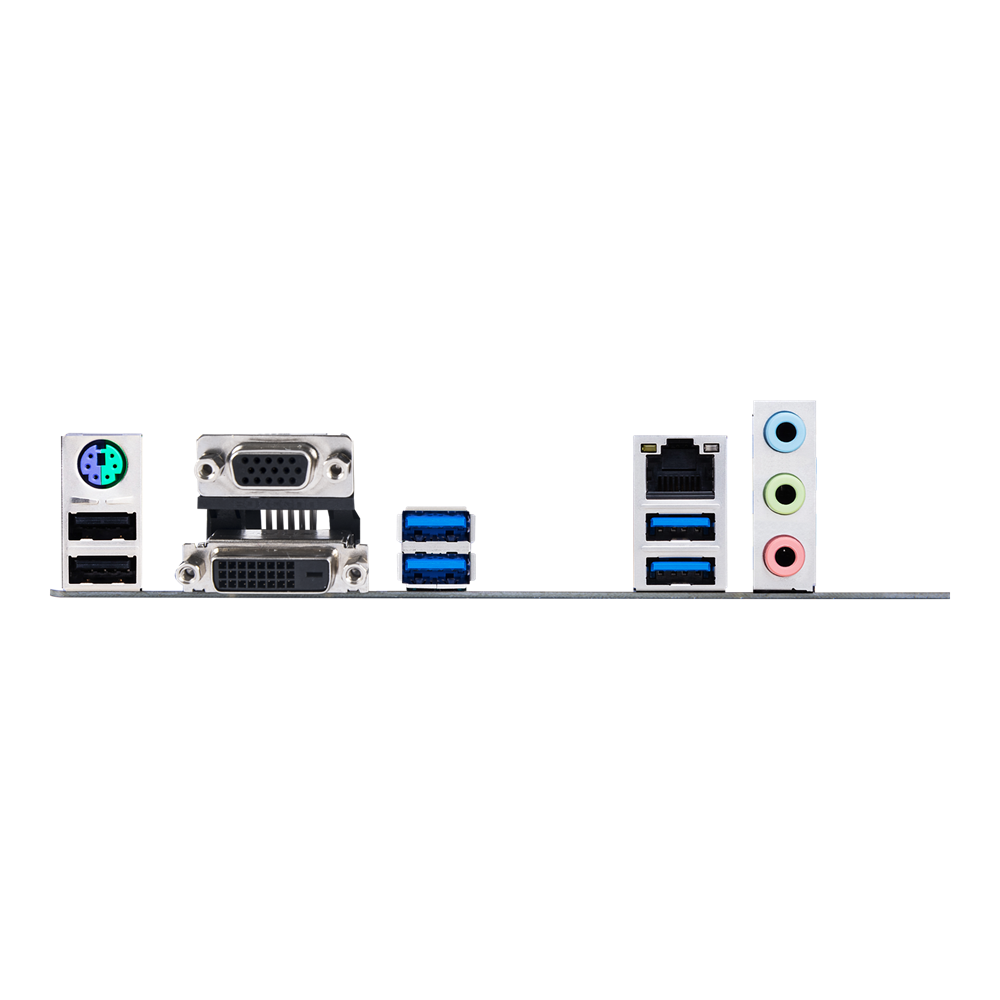

Cổng kết nối ( I/O bên trong)

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x LAN (RJ45) port(s)

4 x USB 3.2 Gen 1 Type-A

2 x USB 2.0

3 x Audio jack(s)

Cổng kết nối ( I/O Phía sau)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x AAFP connector

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support

6 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper(s)

1 x COM port header

1 x Speaker connector

Phụ kiện

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Anchor

1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Kích cỡ

mATX Form Factor

8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )

Ghi chú

* When a device in SATA mode is installed on the M.2 socket, SATA6G_1 port cannot be used.

* A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
